Oblivion Steel 1084 San Mai - (Copper/Nickel/416 Clads)

Oblivion Steel 1084 San Mai – 3x55x500mm

Expertly hand-forged by Oblivion Blades, this 1084 San Mai brings together the toughness and fine edge of 1084 carbon steel with striking outer cladding layers that make every blade a showpiece. Each billet is precision-forged for uniformity, clean welds, and exceptional workability—ideal for both stock removal and forging workflows.

Core Steel

1084 High Carbon Steel – A classic, time-tested blade steel known for its fine grain, ease of heat treatment, and excellent cutting performance. Perfect for beginners and experienced makers alike.

Cladding Options

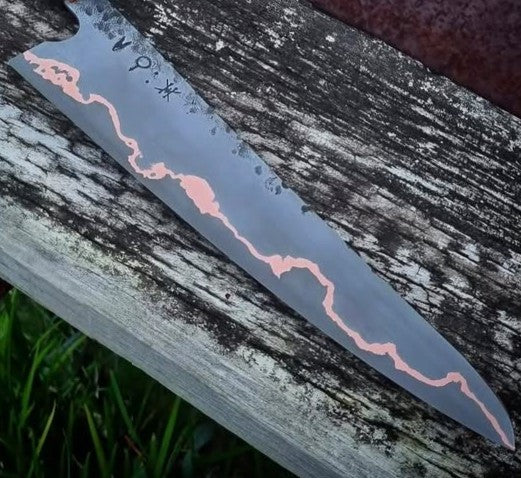

• Copper / 1020 Mild Steel – Warm, vivid copper tones that age beautifully with use, creating a rich patina over time.

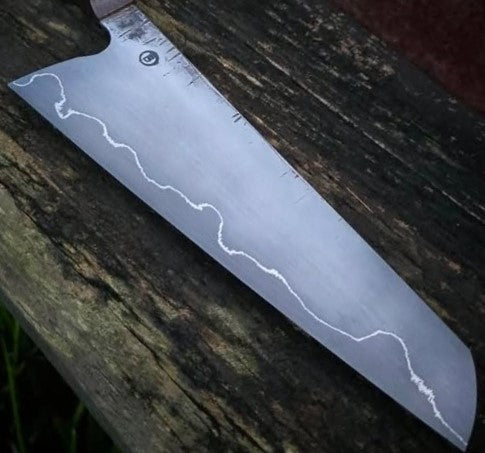

• Nickel / 1020 Mild Steel – Bright and high-contrast, etching to reveal a crisp and defined San Mai line.
• Nickel / 416 Stainless Steel – Sleek, corrosion-resistant, and modern in appearance—ideal for low-maintenance knives with premium looks.

Specifications

• Dimensions: 3 x 55 x 500 mm
• Maker: Oblivion Blades
• Core: 1084 Carbon Steel

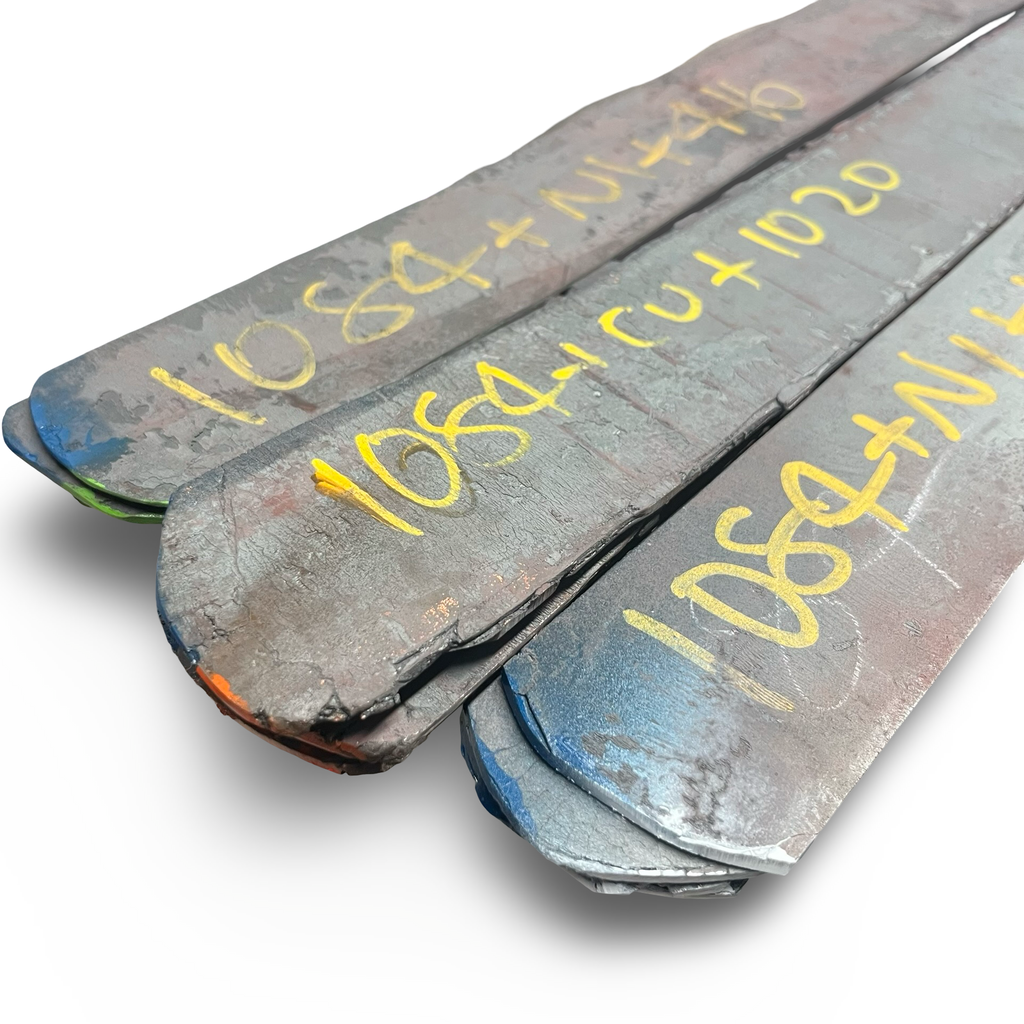

• Clad Layers: Copper/1020, Nickel/1020, or Nickel/416

Heat Treating Instructions (1084 Core)

Forge/Fabrication Notes:

• Forging range: 815–1200°C (1500–2200°F)
• Do not forge below 815°C to prevent cracking.
• Normalize after forging to refine grain and relieve stress.

Normalization:

1. Heat to 870°C (1600°F), air cool.
2. Reheat to 830°C (1525°F), air cool.
3. Final cycle at 760°C (1400°F), air cool to room temperature.

Austenitising:

• Heat evenly to 800–830°C (1475–1525°F) and hold for ~5 minutes.
• Avoid overheating—1084 is simple carbon steel and sensitive to grain growth above 830°C.

Quench:

• Quench immediately in fast oil (e.g. Parks 50 or Houghton K).
• Warm oil (40–60°C) helps reduce shock and warping.

Tempering:

• Temper as soon as the blade is cool to touch (~50°C).
• Recommended range: 150–220°C (300–430°F) for 58–62 HRC depending on desired hardness and use.
• Double temper for 1 hour per cycle.

Optional Finishing Notes:

• For best results, lightly sand and etch after heat treat to bring out the San Mai contrast.
• Cladded steels may warp slightly—straighten gently while warm from quench if needed.
